Provided the ship has enough provision, water and fuel, everybody loves time at Anchorage.

Right?

We all love having the opportunity for a breather from the continuous cycle of loading, unloading and everything in between.

Even the environment on the wheelhouse is bit relaxed while the ship is at anchor.

But it is not unusual that the wind speed would start to increase, or for a nearby ship to drag her anchor or even own ship start to drag anchor.

The relaxed environment might become hair-raising, unexciting and spine chilling.

So let us face it. Keeping an anchor watch is only easy until everything is fine and the anchor is holding.

But that is not true if you know the signs to looks for to determine if the anchor is dragging.

Early detection of the dragging anchor situation can save a lot of trouble.

In this post, I will discuss the indications to look for to get an early warning of the ship dragging its anchor.

Let us jump in.

Anchoring a ship

The first thing that we need to know for keeping a good anchor watch is the position of the anchor.

And there is only one way to know this position.

By noting down the position of the ship when the anchor is dropped.

In the case of anchoring in deeper waters where anchor will be lowered with gear, it is the position of the ship when the anchor touches the sea bed.

It is the duty of the officer on watch during anchoring to note down this position.

It is good practice to note down this position along with the time of “let go anchor” in the movement book.

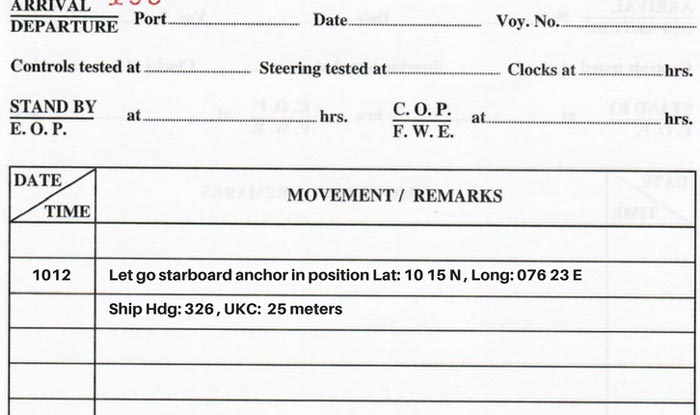

movement-book-anchoring

Another thing that we need to do is press the MOB button on the GPS when the anchor is dropped.

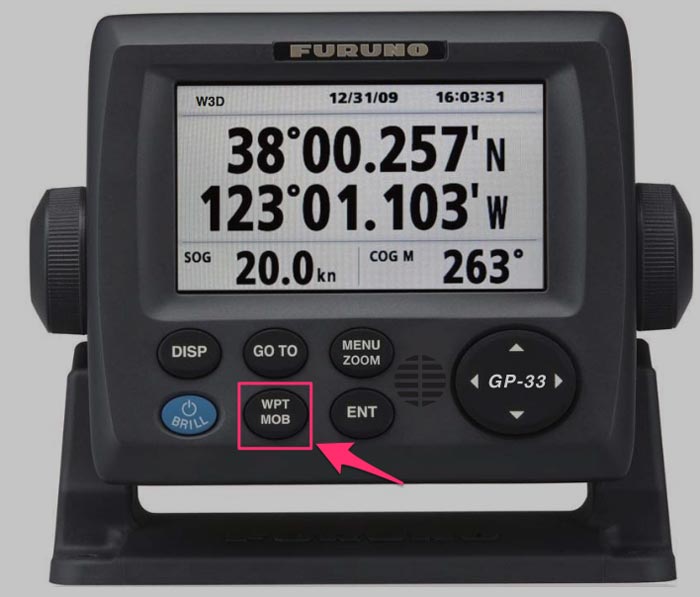

furuno-GPS-MOB-for-anchor-let-go-position

This will automatically save the position at the time of pressing the MOB button (anchored time). Usually, this position is saved as WP 999.

Swinging circle of the ship

Once we have the anchor position, we need to know the swinging circle of the ship while the ship will be at anchor.

This is important because no matter in which direction the ship swings, it will never go out of the swinging circle if the anchor is holding.

If the ship goes out of the swinging circle, the ship’s anchor is dragging.

Compare this with a cow tethered to a post. The cow can only swing on a circle with radius equal to the length of the rope she is tied to.

She can only go out of this circle when the rope has left the post.

Now coming back to the ship, the ship’s swinging circle at anchor is approximately equal to

distance from ship’s wheelhouse to forecastle + length of the anchor chain paid

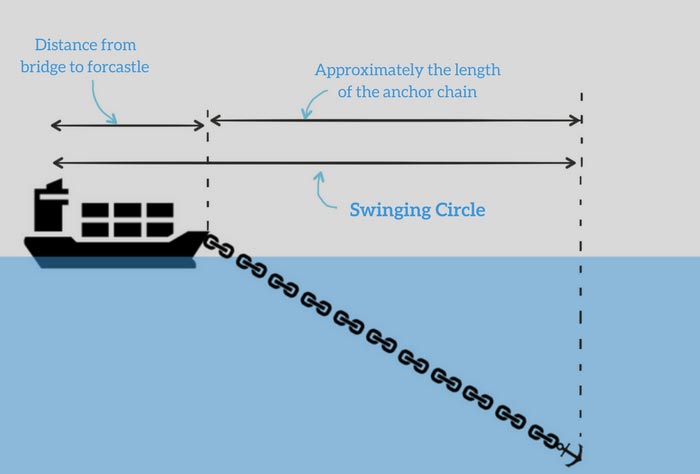

swinging-circle-of-the-ship-at-anchor

This is the approximate swinging circle as the 2nd distance is not exactly the length of the anchor chain.

But believe me, you do not want to be accurate to a couple of meters as you won’t be able to measure the movement of your ship to that accuracy.

For example, considering a ship anchored in a depth of 30 meters with 5 shackles on deck, the error in the swinging circle (with the simple formula above) will be only 3 meters.

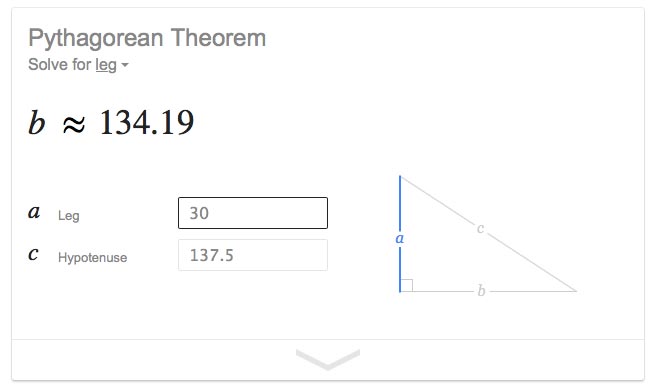

pythgorean-theorum-for-anchor-chain

So now let us take an example to calculate swinging circle of the ship.

Let us say the distance from bridge wing to the forecastle is 150 meters. The ship is anchored with 5 shackles on deck.

So the swinging circle, in this case, would be

Swinging circle = 150 meters + (5 x 27.5) meters

This gives us swinging circle of 287.5 meters.

Now we want this to be in nautical miles. So divide this value by 1852 (1 Nautical mile = 1852 meters).

This gives us the swinging circle of 0.155 NM.

Importance of Anchor Alarm

I often ask this question on board to the duty officers. How would you know if the anchor is dragging?

And I often hear this answer, if the bearings (and range) of the fixed object changes, this would mean that we are dragging anchor.

While there is no doubt that this is one of the ways but this is not the answer I  look for.

Why?

Duty officer would usually check the bearings once every hour.

So if anchor starts to drag at 2010 Hrs LT, the duty officer would only know about the dragging anchor at 2100 hrs LT when he would check the bearings.

We all want something to nudge us just when anchor starts to drag.

An alarm is the best way to get nudged.

So when I ask the duty officer, “How would you know if the anchor is dragging?”, I expect to hear this.

I will be warned by the anchor alarm that I have set and then I will confirm with the bearing of the fixed objects if the anchor is really dragging.

How to set the anchor alarm

Having an alarm warn you if the ship goes out of the swinging circle is good. But we must know how and where to set that alarm.

The anchor alarm needs to be set in the GPS.

To set the alarm, first, we need to press “GO TO” on the GPS and then choose the waypoint 999 that we had created by pressing the MOB button at the time of dropping the anchor.

This will give us the ship’s distance (Range) from the anchored position.

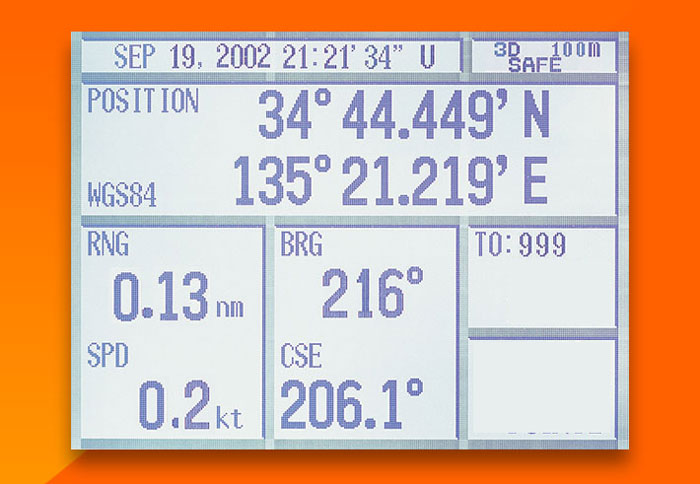

Furuno-anchor-alarm

If this range becomes more than the swinging circle of the ship, the ship’s anchor may be dragging as then the ship is out of the swinging circle.

But for the GPS to give us the alarm when the range to WP 999 becomes more than swinging circle, we need to

  • Set the swinging circle value, and
  • Turn on the anchor alarm

To do that we can go to the alarm settings on the GPS, turn on the anchor alarm and set the alarm range.

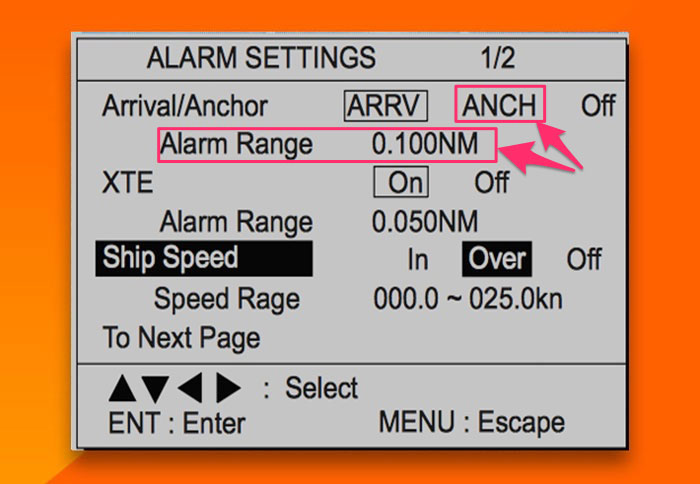

Anchor-alarm-setting

Mistakes to avoid while setting up the anchor alarm

While setting up the anchor alarm may seem simple (which surely it is), we sometimes make simple mistakes in this.

I do not want to list here the mistakes like alarm volume being too low etc. What I want to highlight is to test the alarm.

So if the actual range (to WP 999) is 0.13 NM, we should first set the alarm to less than this value (Say 0.09NM) and then see if the alarm sounds.

If it sounds, everything is alright.

We can then change the alarm range to the actual swinging circle we have calculated after anchoring.

Another mistake I often see officers making is to set the anchor watch on ECDIS without testing it.

On ECDIS the swinging circle and anchor watch can be set.

anchor-watch-on-ECDIS

But not all the ECDIS give the audible alarm if the ship goes out of the swinging circle. Instead, these would just give a visual warning on the ECDIS.

So if we want to use the anchor watch function of the ECDIS,

  • it must be used as a supplement to the GPS anchor alarm, and
  • We must know if in case vessel goes out of swinging circle, the ECDIS would give the audible alarm  or not

Ship position by bearings of fixed objects

By setting the anchor alarm we are making good use of available electronic aids.

But if possible, the visual bearing of two objects (or two points on the coast) is the best way to check the anchor position.

The two objects or points on the coast must not be on the same (or close to same) bearing lines. The bearings of these two objects must be separated by a significant angle.

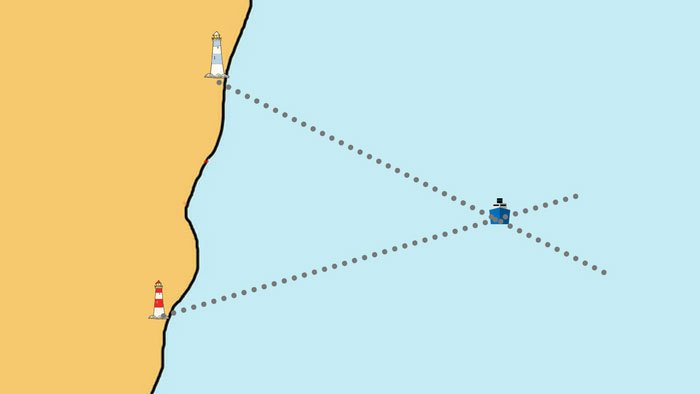

bearings-separated-by-some-angle

If available, these two fixed objects must be identified just after anchoring. If possible, the master should discuss the identifiable and conspicuous fixed objects with the duty officer before handing over the command to the duty officer.

Once identified, the bearing of these two objects is taken at least once every hour. If there is no significant change in these two bearing, the ship is holding its position.

Record the bearings in the anchor log.

Use of radar for anchor watch

We have discussed so far how to use GPS and Gyro (Visual bearings) to determine if the anchor is dragging.

Apart from that, the Radar is very useful equipment for monitoring anchor positions.

For using the radar for anchor watch requires radar conspicuous fixed objects. The presence of racon in the vicinity makes it even easier.

Straight coast with no edges is not useful for radar bearing.

If the radar conspicuous objects (or coast line) is available, bearing and range from this can be measured every hour.

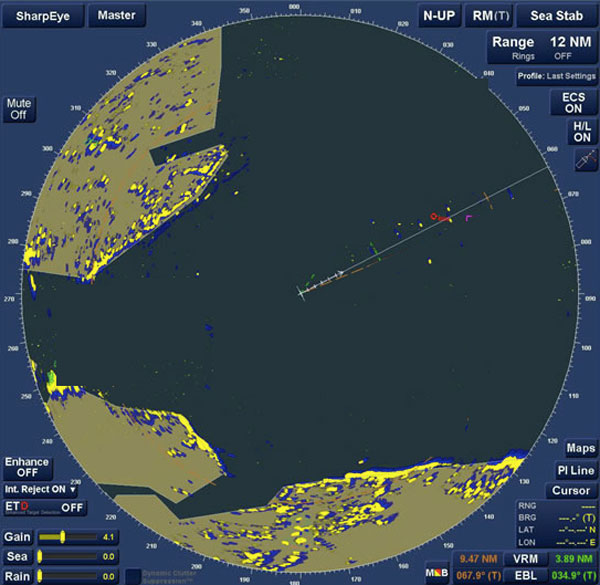

Radar-for-anchor-watch Another way that I see navigators make use of is with the EBL and VRM on the radar.

We can set the EBL and VRM on the radar and point it to the fixed object that we want to take bearing and range from.

If the EBL and VRM stay right there on the fixed object, the ship has not moved and the anchor is holding.

The good thing in this is that each time you have your eyes on the radar screen, you can easily make out in a flash if the ship is maintaining its position or not.

Ship’s speed as an indicator

Ship’s speed can be a good indicator of the dragging anchor.

A ship at anchor or when drifting will always head to the resultant of all the external forces (the wind, current etc).

When the ship’s anchor is holding, its speed over ground would be zero and speed through water will be equal to the current of the water.

But when the ship’s anchor is dragging, she would be moving with the flow of the current. In this case, ship’s will have some speed over ground but the speed through water will become close to zero.

So when the ship is dragging her anchor, she will have the negative speed over ground (GPS speed).

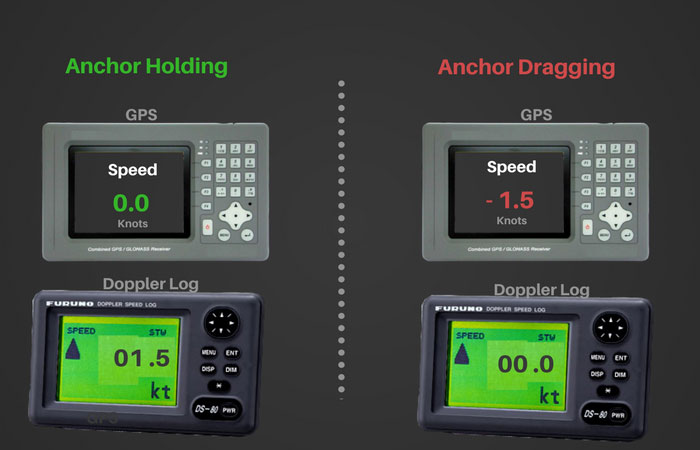

dragging-anchor-speed-indication

So when we are trying to look for an indication of dragging anchor, ship’s speed can be one of the things to keep an eye on.

But this will not hold good when the ship is swinging due to change of tide or wind direction.

When the ship is swinging, the GPS may show some speed. Faster the ship swings, more speed the GPS will show.

In this case, GPS speed may not be the indicator of dragging anchor. Just wait for the ship to steady its heading and then observe if the ship has some speed.

Flag on the anchor chain

Not all seafarers use the practice of tying up a flag on the anchor chain after anchoring.

And it is not a hard and fast rule to do that.

Let us understand the role of this flag.

There are two things we can do after anchoring.

  • Rest the anchor chain on the bar, or
  • Put the bar but keep it clear of the anchor chain

As per the mooring equipment guidelines, both methods have its merits and demerits and anyone of these can be used.

I prefer resting the chain on the bar.

If we choose to keep the anchor chain clear of the bar, it is good practice to tie a flag to the anchor chain.

If the flag falls down, this means the anchor chain has slipped and rested on the bar. This gives the indication that there is a lot of weight on the anchor chain.

This could be the first indication that the anchor may drag or is already dragging.

Watching the anchor chain

Watching the anchor chain in water is another way to know if the anchor is dragging.

As the ship is falling back, anchor is expected to hold the ship and stop it from falling back.

Ideally as the ship falls back, the anchor would stretch to the maximum capacity. That is, anchor will have the long stay.

Now if the anchor is holding and once it is stretched out, it will not allow the ship to fall back and will pull the ship forward.

As the ship moves ahead, the weight on the anchor will ease and finally rest at short stay.

But if the anchor is dragging, instead of pulling the ship forward the anchor would loose the sea bed and become up and down rapidly.

Ship will continue to fall back and anchor will again have the long stay.

So If the anchor is dragging, the anchor will continue to

  • Go to long stay
  • Rapidly come to up and down; and
  • Again to to long stay

So if you suspect the anchor is dragging, send someone forward to watch the anchor chain.

If the anchor is behaving this way, you can think of that the anchor is dragging.

Conclusion

Dragging anchor is not something a watch keeper desires but it is something that may not be in control of the ship staff.

The anchor may sometimes drag.

Dragging anchor can lead to contact with other ship or grounding of the ship.

But all this can be avoided if the watch keeper is alert and knows about the indications of the dragging anchor situation.

Early identification is the key to avoid accident related to the dragging anchor situations.

Anchor dragging is totally acceptable situation provided it does not lead to an accident.
