Have you been doing radar plotting?

I know that the navigators get fed up with this irritating question during third-party inspections.

And when the navigator is just about to answer that question with a Yes,  it’s frustrating for them to find that there are no radar plotting sheets onboard.

If this has happened to you too, then do not worry. It is not very uncommon sight these days.

The reason some of us do not practice radar plotting is one or both of these.

  • We do not think it would help us in any way
  • We do not know how to do it

In this post, I will definitely be discussing how to do radar plotting. But before we start on that, we need to agree on the point if all this is really required and is the radar plotting helpful to the navigators in any way.

is Radar Plotting helpful?

In one word the answer is “Yes”.

When and how?

Well, radar plotting is an alternative for ARPA and thus it will be handy when ARPA is not working.

Let us assume a very realistic situation.

ARPA of one (or both) of your radars stopped working in the mid sea. Of course, the vessel is not complying with the SOLAS.

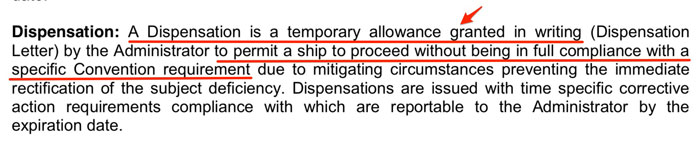

Master will report the fact to the company and company will seek dispensation from the flag to sail and arrive at next port without working ARPA function of the radar.


It is understandable that flag will not deny the dispensation if the ARPA can only be repaired by shore support or by providing a spare part.

The flag will give the dispensation on a condition that the navigators will use radar plotting for all the targets on the radar.

Now believe me when I say this.

If you haven’t been practicing radar plotting, you may find it difficult to navigate the ship safely in this situation.

This is not the only situation where navigators need to rely on radar plotting.

Even when your ARPA is working, you may notice that the radar is not holding on to the some of the targets. By this I mean, the acquired vector is moving away from the target.

A quick radar plotting for that target can give the clear picture of the movement of the target.

The only issue is that like the celestial sight, to be effective radar plotting too need practice.

Now that we understand the significance of radar plotting, let us understand how to do it.

Radar plotting

We already discussed that radar plotting is an alternative to the ARPA.

With radar plotting, we aim to get all the information that ARPA can give. These pieces of information are

  • CPA & TCPA of targets
  • Course & speed of the target

Let us see how to get this information by radar plotting.

CPA & TCPA of targets by radar plotting

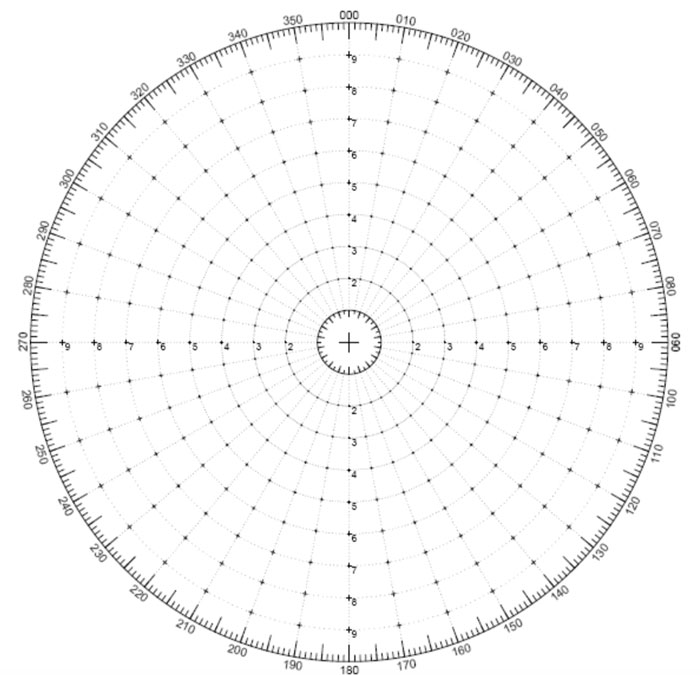

This is how a radar plotting sheet looks like.


When we see the target on the radar, we take the bearing and range of the target and note down the time of observation.

We then plot this on the radar plotting sheet.

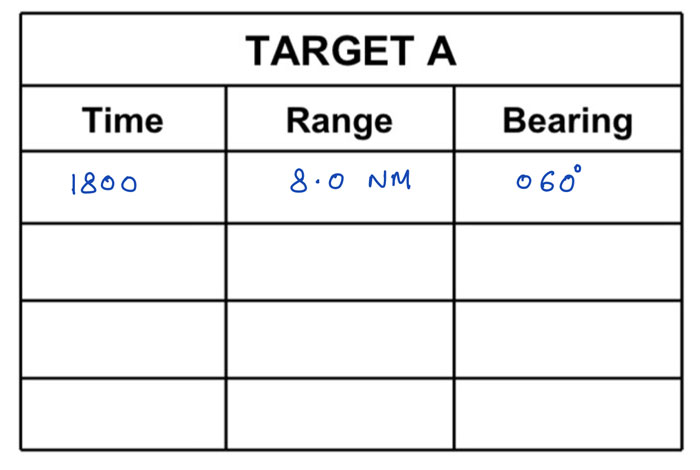

let us say we noted following bearing/range of a target at 1800Hrs LT.


Let us plot this on the radar plotting sheet. This point of first observation is named point “O”.


Now after some interval, take the 2nd and 3rd set of observations of the target and plot it on the radar plotting sheet.

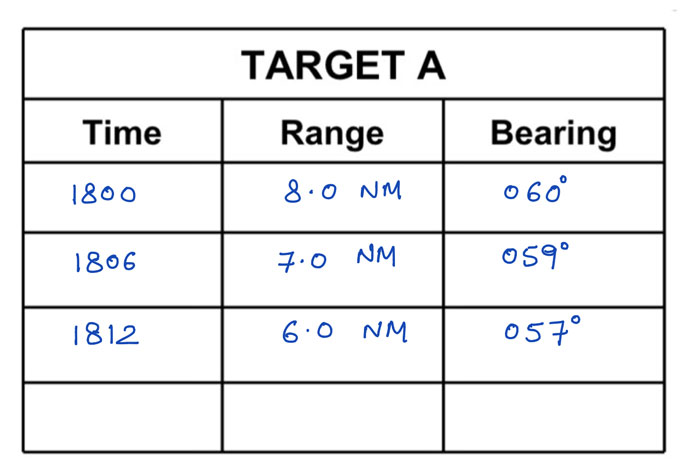

Here are our 2nd and 3rd observations.

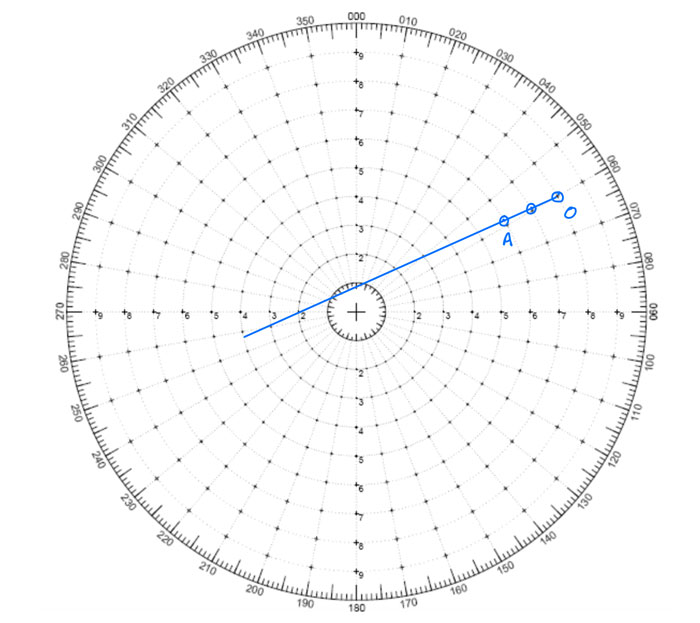

Plot these on the radar plotting sheet and extend the line joining all three points. Name the point of last observation as point “A”.


This is the line of relative approach of the target towards our vessel which we have assumed at the center of the sheet.

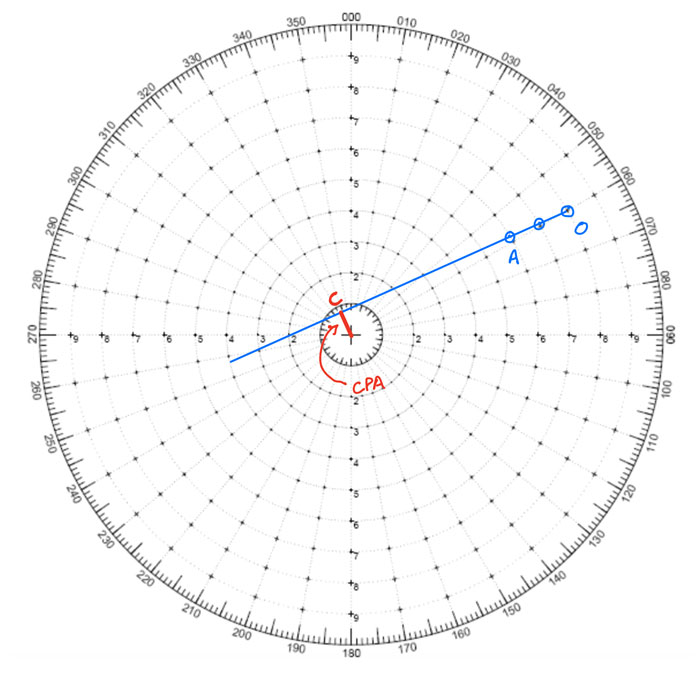

Now for CPA, we need to find the closest point of the line of approach to the center.

To do that just draw a line perpendicular to the line of approach and measure the distance of this line from the scale in the radar plotting sheet.


The CPA here is around 0.8NM.

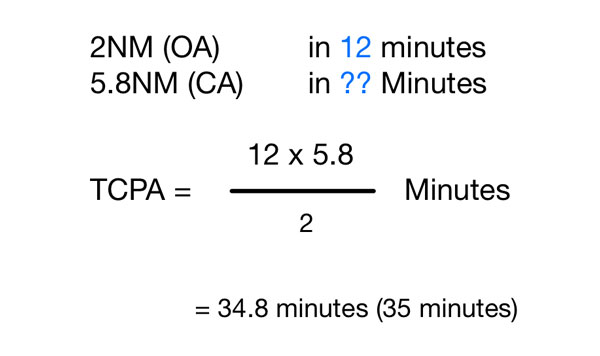

To calculate TCPA, we just need to calculate the time required to reach at point “C” considering it took 12 minutes to cover distance OA.

To do that measure the distance CA and that would be 5.8NM in this case.

Now with simple mathematics calculate the time the target would take to cover 5.8NM with the relative approach speed.

This would be the TCPA. In this case, the TCPA would be 35 Minutes (at 1847 hrs LT).


Course & speed of targets by radar plotting

Next is to find the course & speed of the target.

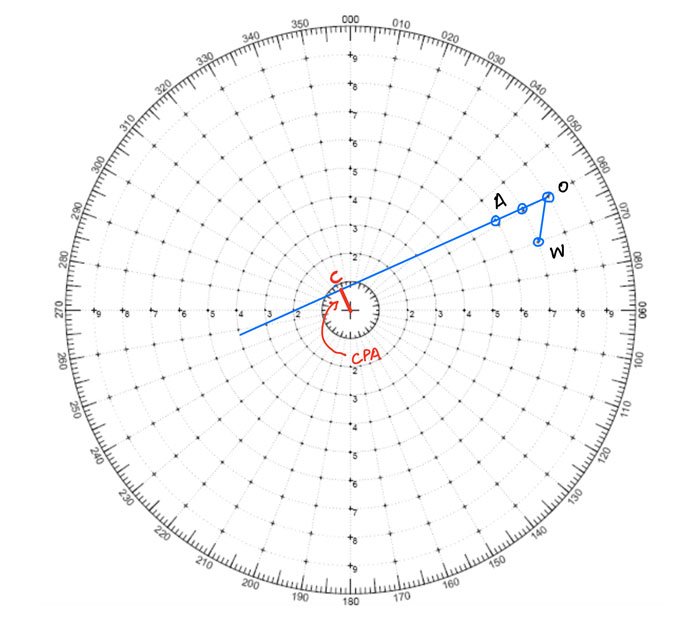

To find that, from point “O” draw your course in opposite direction and cut the distance your ship has traveled for the time period of “OA” (12 minutes in this case).

Let us say your course is 045 degrees and speed is 12 knots.

In 12 minutes your ship with speed 12 knots will travel 2.4 NM. SO from point “O” draw a line in direction 225 degrees and measuring 2.4 NM.

Name this point as “W”, such that WO is your course.

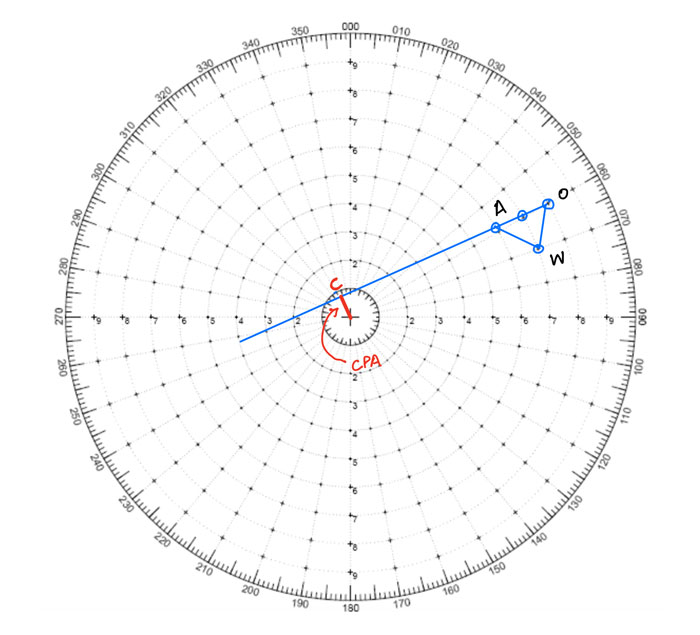

Now join W & A. WA is the course and speed of the target vessel.

Measure the distance WA. This is the distance covered by the target in 12 minutes.

With simple mathematics, calculate the distance it would travel in 60 minutes to get the speed.


In this case, the course of the target is 300 degrees and speed is 7 Knots (WA measures 1.4 NM).

The aspect of the target

There is one more thing that we can get from radar plotting.

Aspect of the target.

There are two areas that we need to explore in this.

One what is the aspect and how to calculate the Aspect of the target. And second what is the significance of the aspect.

First the definition of aspect.

The aspect of a vessel is the relative bearing of own vessel from the target vessel.

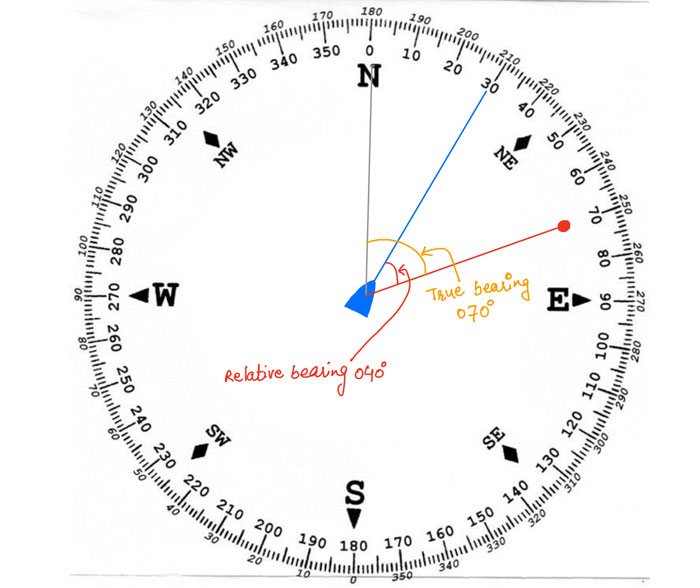

For the starters, this is what the difference between the true bearing and relative bearing.

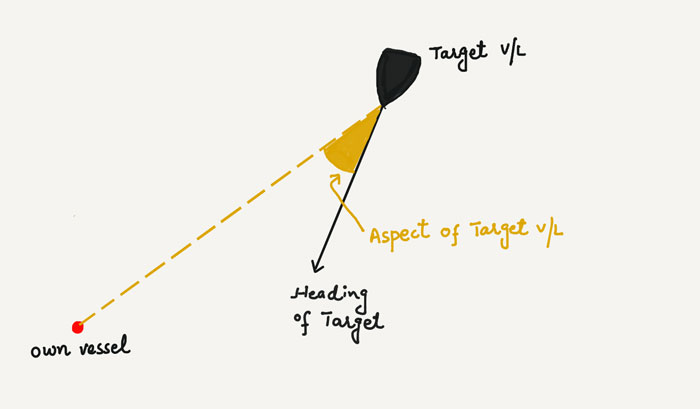

Here is the simplified picture of what aspect of the target vessel is.

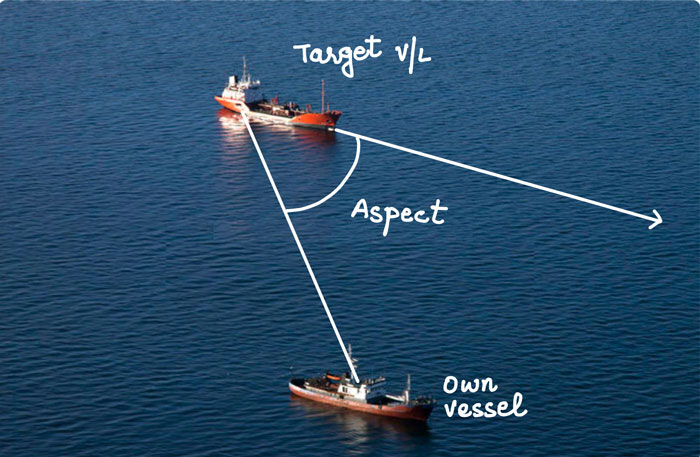

And here is how it would look like with real situations.

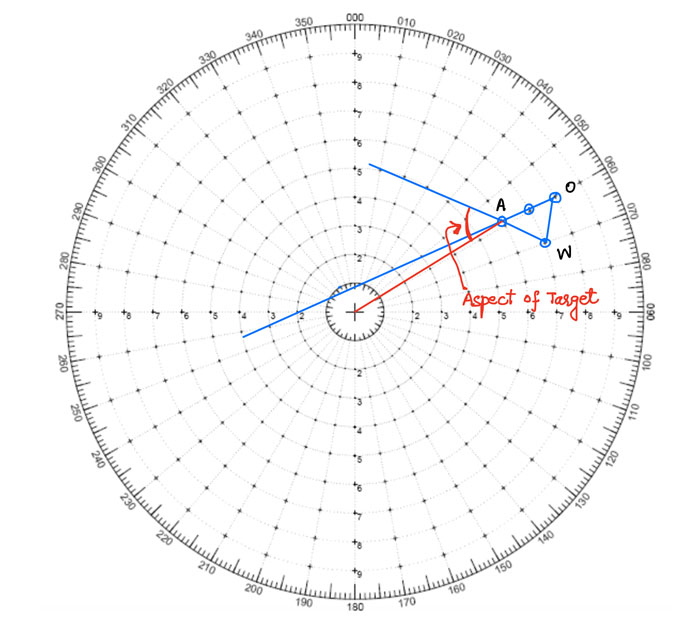

Now let us come back to the radar plotting sheet and the situation we have discussed so far and let us get the aspect of the target vessel.

To get that,

  • Join own ship’s position (which is at the center of the plotting sheet) to the target vessel’s last position (which is at point “A”).
  • Extend the course line of the target vessel (Line WA).

The angle between these two lines is the aspect of the target vessel.


The aspect of the vessel is written as 0 degrees to 180 degrees Red or green.

If we will be able to see the red light of the target vessel, then the aspect will be “Red” and the value will be anything from 0 degrees to 180 degrees.

Same applies if we will be able to see the green light of the target vessel.

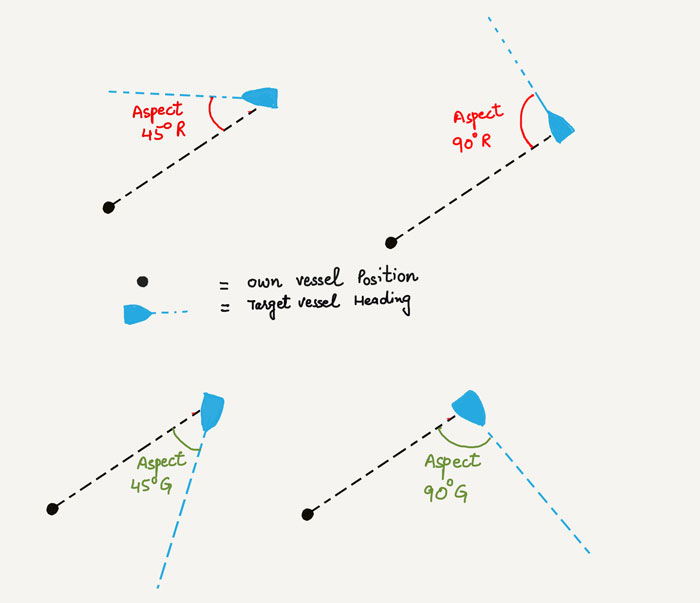

Just to put this in perspective, here is what will be the aspect of the target vessel with different headings.


If you had noticed, I have denoted the own ship with just a dot and have not shown the heading of own ship.

This is because when calculating the aspect of the target vessel, own ship’s heading is irrelevant.

Most navigators would get confused if we show own vessel’s heading too.

The significance of Aspect of the vessel

In radar plotting, we use the relative approach of the targets.

It is the easiest way to find the CPA of the targets. But the issue with the relative approach is that we do not know with certainty the angle at which the target vessel is approaching us.

The course of the target can give us this information but we need to compare this with our own course or heading to get a sense of angle of approach of the targets.

With the aspect of the vessel, it becomes easy and quick to understand the direction of approach of the target.

For example, compare these two statements.

  • A target is 2 points on our starboard side with course 265 degrees and our course is 330 degrees.
  • A target is 2 points on our starboard side with the aspect of around 60 degrees red.

Which statement would give a clearer picture of the angle of approach of the target?

When answering this question do not forget to consider that you just have these numbers. You do not have this information plotted on the radar screen as ARPA is unavailable.

If you think a bit, you will notice that it is much easier with the second statement.

Let me clarify it with a realistic example.

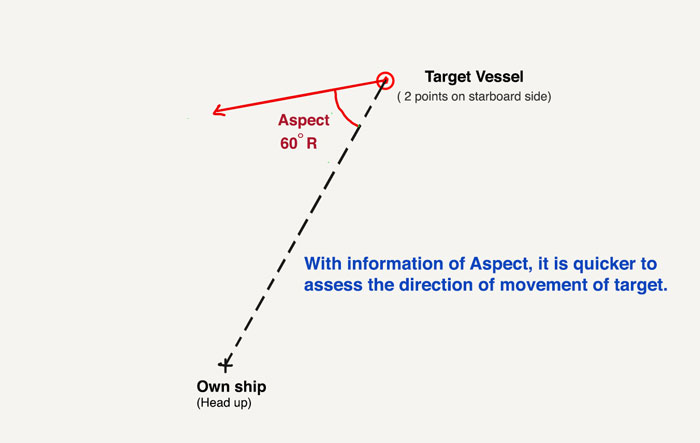

We are on the bridge with inoperational ARPA and I point to a target on the radar screen and ask this question to the duty officers…

Where is this ship headed?

Two duty officers present do the radar plotting and reply with different answers.

  • The first duty officer replies, “her course is 265 degrees”.
  • The second duty officer replies “her aspect is 60 degrees red”.

Which information do you think I will use? Again, remember we have inoperational ARPA.

I would use the second information because with this I clearly and quickly know where that ship is heading.


In simple words, the aspect of a target describes how much of the target vessel’s profile we will be able to see.

If the aspect is “90 degreed Red”, this means that we will be able to see the complete port side profile of the target vessel.

If the aspect is 0 degrees, this means that we will be able to see the front profile of the target vessel.

Now that we know exactly what the aspect of the target is, we can use this in a number of other ways.

Identifying the targets you must monitor

If we are sailing in moderate or heavy traffic area without ARPA, it becomes extremely important that we identify (& segregate) the targets that are passing clear and the one that is not clear.

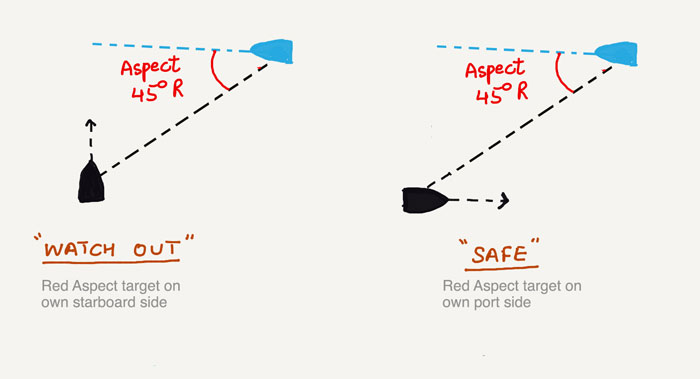

Applying the below principle is one of the ways.

  • All targets with Red aspect on our port side and with green aspect on our starboard side are usually “no danger targets”.
  • All targets with red aspect on our starboard side and with green aspect on out port side are the targets we need to watch out for.

Here is the example of the first point.


This does not in any way mean that we should not monitor the targets with red aspects targets on our port side (and green aspects on our starboard side).

The above statements help to a certain extent to prioritize the targets.

If we understand the concept of the aspect of the target, we can devise our own ways to use this information during navigation.

Change of course to maintain certain CPA

We now know the basics of radar plotting and it is time to move on to little-advanced ways of using radar plotting.

Let us say we did the radar plotting of a target to find that the CPA is 0.8NM but we want to maintain 2NM CPA with this target.

The best way to increase the CPA is to alter our course. But how much course we must alter to maintain that CPA?

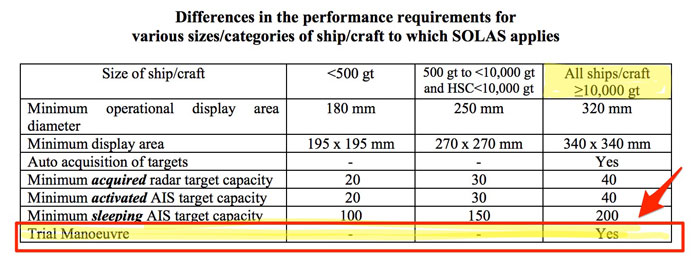

Radars have the functionality called “Trial maneuver” where you can set the new course to see the new CPA/TCPA with all the acquired targets.

This is a wonderful tool to know the course/speed to change to maintain a certain CPA with a target.

But this functionality is only required for radars fitted on vessels more than 10000 GRT.


But if our ARPA is not working or if we are on a ship less than 10000 GRT, radar plotting can do this job too.

Let us see how.

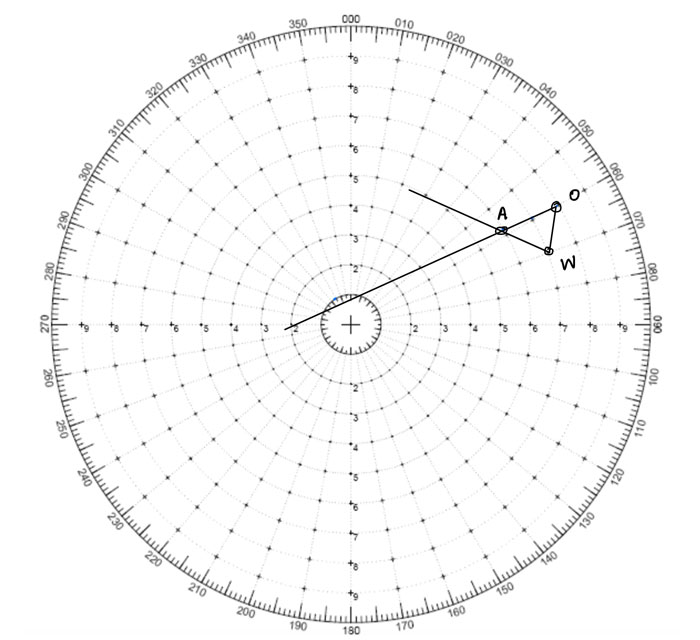

Let us take the same example we used earlier. Target’s CPA is 0.8 NM and we want to maintain CPA of 2.0 NM by changing our course.

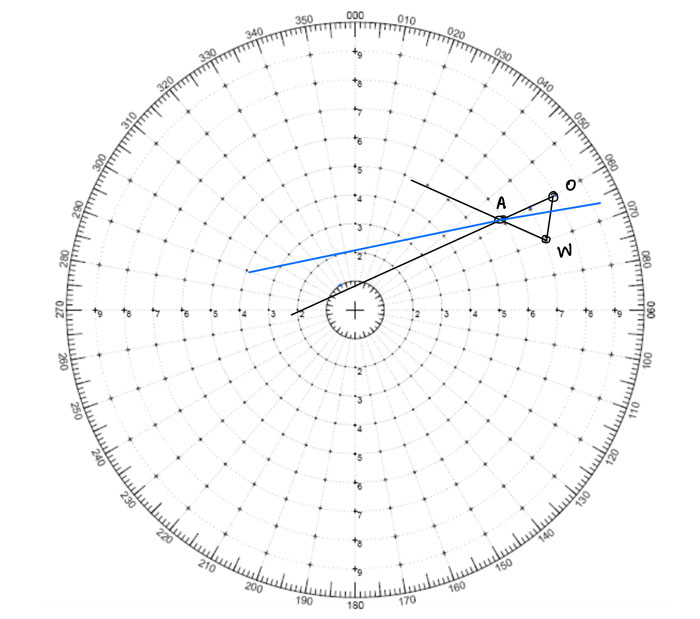

Draw the new line of approach from point A such that this line passes through 2NM radius (CPA 2NM).


Now as we are not changing our speed, the length WO will remain same.

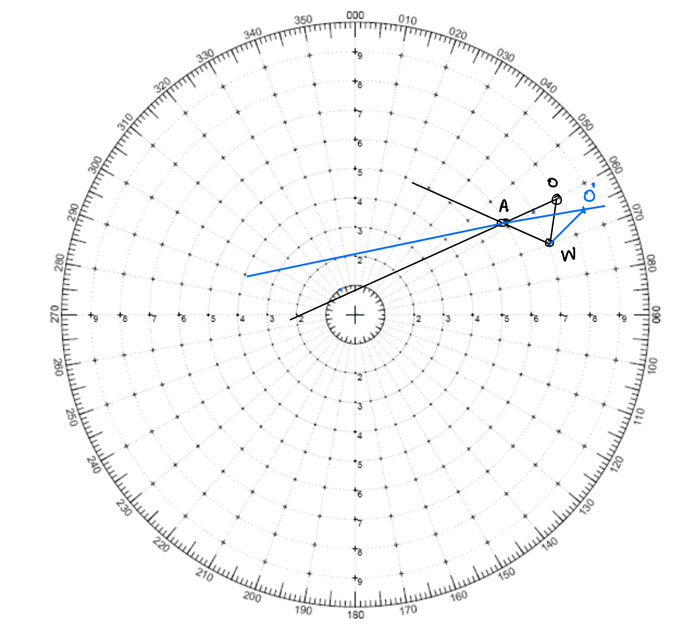

So measure WO and from point W, mark a point O’ on new approach line such that length WO is equal to WO’.

Join points W and O’.


WO’ is the new course that we must make to maintain CPA of 2NM with this target.

This is just one of the example. But we can use the radar plotting to solve situations like

  • How much speed must we reduce to maintain a certain CPA with the target?
  • How much speed must we reduce to maintain a certain CPA with the target if we also altered our course by 10 degrees to starboard?
  • How much course and/or speed the target must make to maintain a certain CPA with our vessel?
  • How much course must each vessel alter to maintain a certain CPA with each other?

I will briefly cover few other situations.

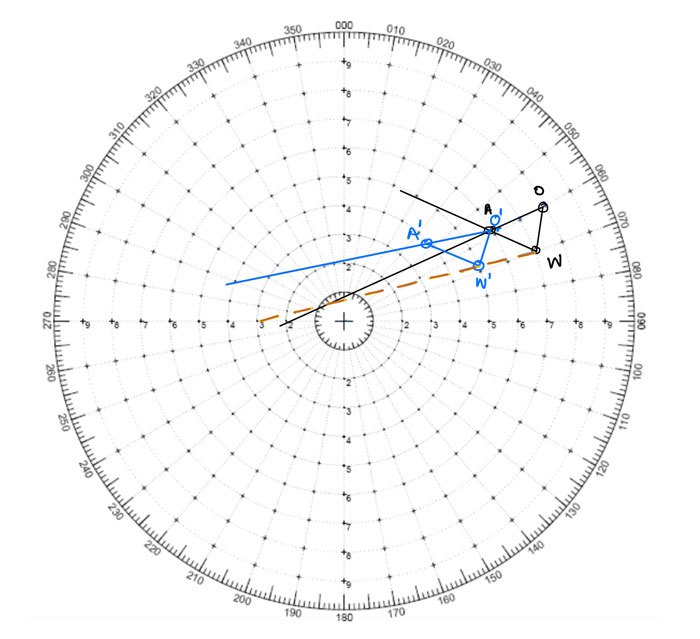

Reducing own speed to maintain certain CPA



  • From point “W” draw a line parallel to the new (desired) line of approach (Dotted line in above plot)
  • From point “A”, draw your opposite course. The point where it cuts the dotted line, name this point as W’.
  • From W’, draw the course of the target. Where it meets the desired line of approach, name this point as A’.
  • Measure O’W’. This needs to be the distance covered by own vessel in 12 minutes to maintain 2NM CPA. Calculate the required speed of own vessel based on that

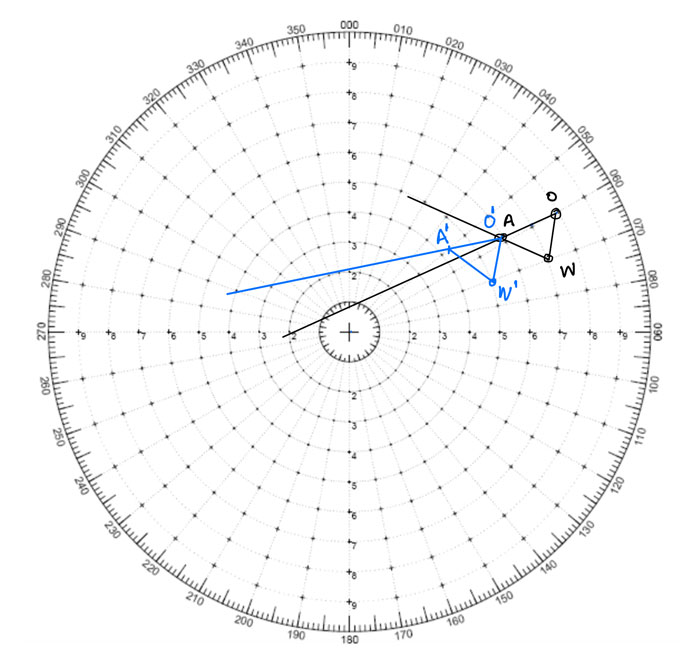

Required course change by the target to maintain certain CPA


  • As own course and speed remains same, from point A (also named O’ in the new triangle) draw your own course in opposite direction such that O’W’ is equal to OW.
  • From point W’, cut a point on new approach line such that W’A’ is equal to WA as the speed of the target is not changing.
  • Measure the angle of W’A’. This is the new course that target must alter to maintain CPA of 2NM.


With ARPA on board ships, the art of radar plotting is fading away.

But it is not that radar plotting is not relevant nowadays.

In situations like sailing with in-operational ARPA under flag dispensation, radar plotting will be of great help.

But if we haven’t been practicing radar plotting, it can’t effectively substitute ARPA in situations when it is desperately required to.

Related Blogs

Follow us Today on
our social network

Capt Rajeev Jassal

About Capt Rajeev Jassal

Capt. Rajeev Jassal has sailed for over 19 years mainly on crude oil, product and chemical tankers. He holds MBA in shipping & Logistics degree from London. He has done extensive research on quantitatively measuring Safety culture onboard and safety climate ashore which he believes is the most important element for safer shipping.

Search Blog


Ankit Dubey
Ankit Dubey
May 15, 2018

Very interesting sir ..It would be a great help if you can make a blog covering the various Collison prevention situations and their relevant action .Thanks a lot sir.. awaiting your positive feedback!!

Rajeev Jassal
Rajeev Jassal
May 16, 2018

Thanks, Ankit. I will surely write on that.

Jun 11, 2019

Good morning capt Rajeev please what can i do the question says while steering 242 at a speed of 10knot the following observations were made 1.Time 0527 Brg297 Rng 8.4 2.Time 0533 Brg 297.5 Rng 6.8 3. Time 0539 Brg 298 Rng 5.2 Determine the following 1. Speed and course of target 2. CPA TCPA and time to CPA 3. WHAT actions are expected from both vessels 4. if own ship stop at 0545 what is new CPA and time of CPA .

May 17, 2018

Dear Sir, Can I obtain CPA of a target while i only known range of target and vector is 30 minutes? If possible, please kindly answer.

Rajeev Jassal
Rajeev Jassal
Oct 14, 2018

It is two or more bearings of the target that is required to get the CPA.

Capt. Chander Vart
Capt. Chander Vart
May 19, 2018

Another very well written article from you Capt. Rajeev. Shall be of great assistance to navigating officers.Keep up the good work.

Rajeev Jassal
Rajeev Jassal
Oct 14, 2018

Thanks Capt Chander...

May 22, 2018

Very well wriiten capt jessal , pls keep up the good work

Rajeev Jassal
Rajeev Jassal
Oct 14, 2018

Glad you liked it...

Shahbaaz Ahmad
Shahbaaz Ahmad
May 27, 2018

Well written post sir, whole funda of radar is cleared, thnx alott for a wonderful post.

Rajeev Jassal
Rajeev Jassal
Oct 14, 2018

Glad you found it useful Shahbaaz...

Boris Andreevich
Boris Andreevich
Jun 5, 2018

Thank you Sir, very clear and interesting post, a lot of useful information.

Rajeev Jassal
Rajeev Jassal
Oct 14, 2018

Thanks Boris...

Mohammad Alriyati
Mohammad Alriyati
Jun 29, 2018

Thank You So Much Sir, Best And Easy Way Ever I Had Been See.

Rajeev Jassal
Rajeev Jassal
Oct 14, 2018

Glad you liked it Mohammad...

naveen kumar
naveen kumar
Jul 20, 2018

thank you sir it was very help ful

Rajeev Jassal
Rajeev Jassal
Oct 14, 2018

Thanks Naveen...

Nov 1, 2018

Thank you sir, explained in very easy and simple way. Great work.....

Julius gabobga
Julius gabobga
Dec 4, 2018

Very interesting piece. thank so much

Dec 24, 2018

Thanks for the article, it has been very helpful. A question that has come up in my sample exams is: Question: after a bold alteration to starboard my new CPA is well over 3 Nm, how long do I need to hold this new course before I can return to my original course to maintain a CPA of 2 Nm. I really hope you can help me answer this question?

Jeffrey Tuckerman
Jeffrey Tuckerman
Feb 26, 2019

Thank you very much for this. I lost my radar plotting notes from college and wanted to revise it. This was perfect.

Navjyot Singh
Navjyot Singh
Mar 20, 2019

I have an exam in another 2days and i want to ask 3-4 questions to u regarding the ARPA. I have the pics of the questions too! It would be very appreciable if u can send me ur contact number sir!

Dhir singh
Dhir singh
Apr 19, 2019

Sir i always find your articles intersting. I want to correct you that here you denoted aspect 60 degree approx. but the correct aspect here is approx. 90 and exact value is 92.5 R. you have taken relative brng of target from our vessel but its relative brng of own vessel from target vessel. Thankyou sir for ur articles keep writing we find these very intersting.

ravneet singh
ravneet singh
Mar 10, 2020

Awesomely explained specially the aspect part, very stupendous effort.

Kalyana chakravathy
Kalyana chakravathy
Jun 23, 2020

Thank you sir you cleared all my doubts about radar plotting...

Jun 30, 2020

http://www.splashmaritime.com.au/Marops/data/text/Radartex/Radarplottex.pdf at least fix your example. the own vessel course given is wrong (045). no?

machine learning course
machine learning course
Nov 23, 2020

Your work is generally excellent and I value you and jumping for some more educational posts machine learning course

Dec 28, 2020

Thanks for sharing information, we are glad to read your Article in future we are looking forward to see more please keep sharing.https://fortune99homes.com/dm/fortune-smart-city-open-plots-in-shadnagar/

Feb 9, 2021

First of all I want to congratulate you for your efforts to share practical knowledge in such a detailed way. After 25 years of teaching Radar Navigation, Radar plotting & use of ARPA at Constanta Maritime University I still can say that learning the use of ARPA without previously learning the basics of manual radar plotting is as been promoted from deck-hand up to OOW based only on years of on board practice without graduating any maritime school. Regarding the content of your article I just want to point something related to the practical use of target ship Aspect when you evaluate a traffic situation: • The fastest way to obtain the value of the aspect is by computing it (Asp = oppTB – TS Course) not by measuring the Aspect angle with the protractor. • The value of the Aspect is not very important. Important is the sign of the Aspect (Red or Green). Why? Because the OOW is analyzing mainly the close quarter situations (target ship(s) CPA is less than the safety distance). For these potentially dangerous targets the sign of the Aspect will show if the target ship is a Stand-On vessel or a Give Way vessel , as follows: • If the Aspect to an approaching target with a CPA smaller than the safety distance (ordered by the Master for that navigation area) is RED, than the target ship is a STAND ON VESSEL and our ship should manoeuver to avoid the dangerous ship • If the Aspect to an approaching target with a CPA smaller than the safety is GREEN, than the target ship is a GIVE WAY VESSEL and our ship should maintain course and speed (at least in the first stage of the encounter) This is the real IMPORTANCE of the Aspect. Regarding the analysis of the encounter between our ship and a dangerous target ship important is own ship true course and target ship true course, not the value of the Aspect. The OOW has to asses which are the type of encounter with the dangerous ship (crossing, head-on or overtaking). The encounter type in relation with COLREG Rules of the Road provisions are telling what the OOW will have to do if own ship is a Stand-On or Give-way vessel. That’s why the 1st thing that you have to draw on radar plotting sheet is the Own Ship Course (true). After plotting the observed positions to the target ship and determine the target ship true course it is easy to visualize on the plotting sheet how the target ship course line is interacting with the own ship course line and to define if it will be a crossing, head-on or overtaking encounter. It is the same way as you should proceed when you look at the ARPA radar screen and see the vectors of the plotted targets. You switch on TRUE VECTORS (if the ARPA radar is not already in TRUE MOTION mode) and assess how the true vectors of the plotted target are interacting (intersecting) with own ship heading line (ARPA radar working of course NUP or CUP). Hopping that I was not to boring I will rest here and wish you to continue to Keep Up the Good Work.
